CTXAPI

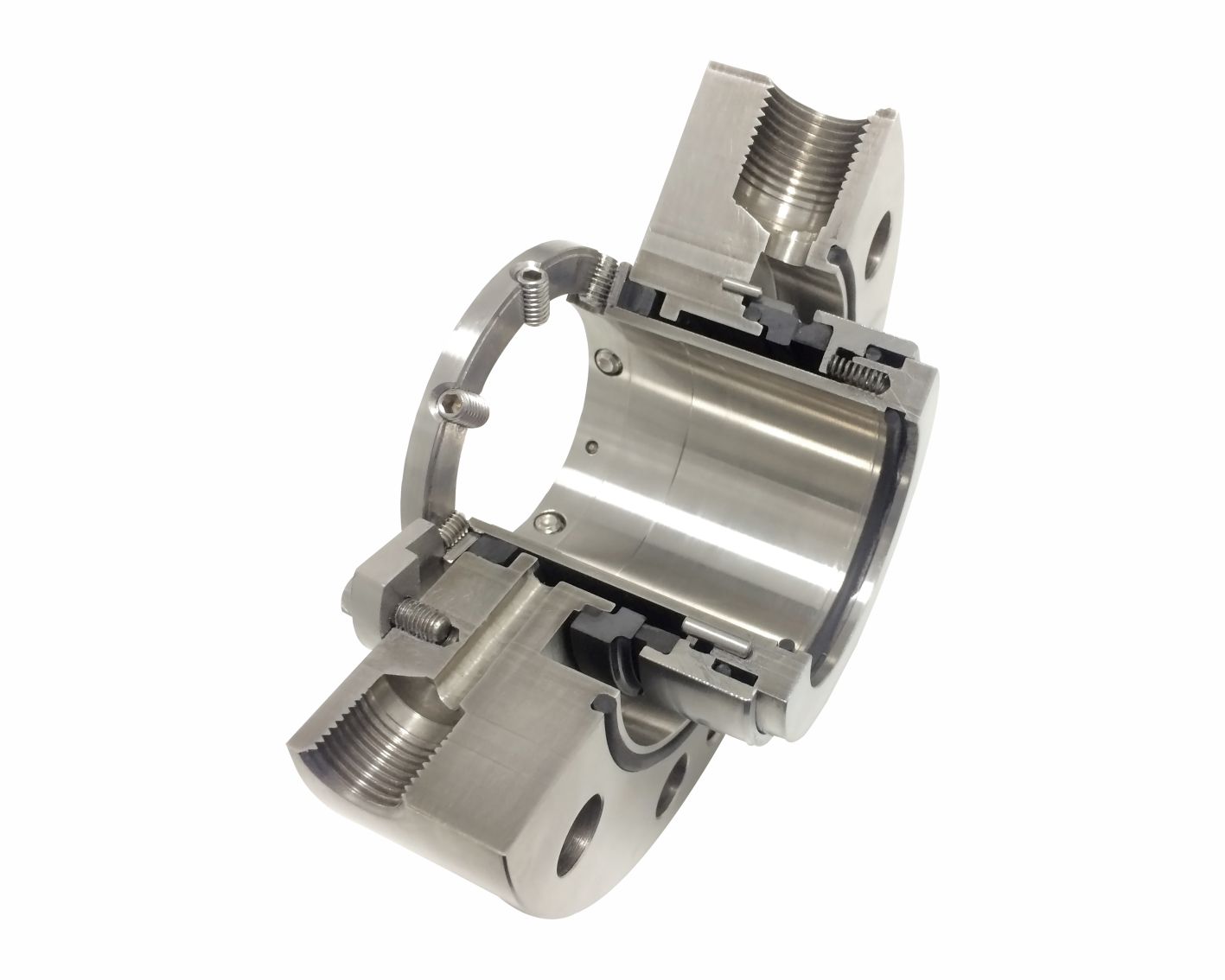

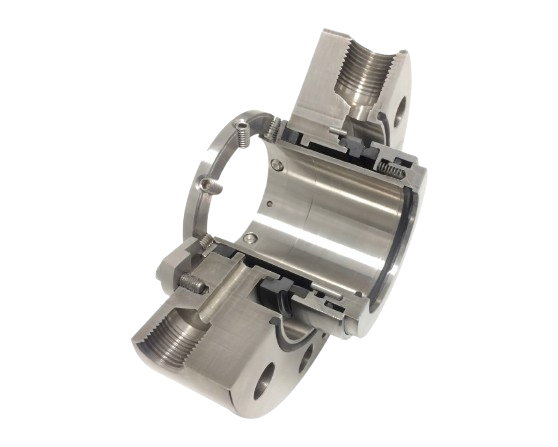

Product Description
- Single and Dual seal configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction
- Seal design in accordance with API 682 / ISO 21049
- Conforming to Category 1, Type A, Arrangement 1, 2 or 3
- Single seal with API Plan 11 and 61
- Dual seals with API Plan 52 / 53
- Robust construction with shrink-fitted seal faces
- Heavy duty solid seat design
- Also available in design variation for independent of direction of rotation
- Additional flushing plans available on request

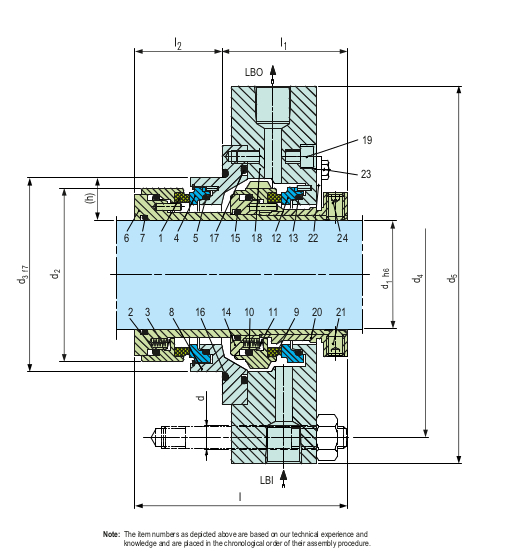

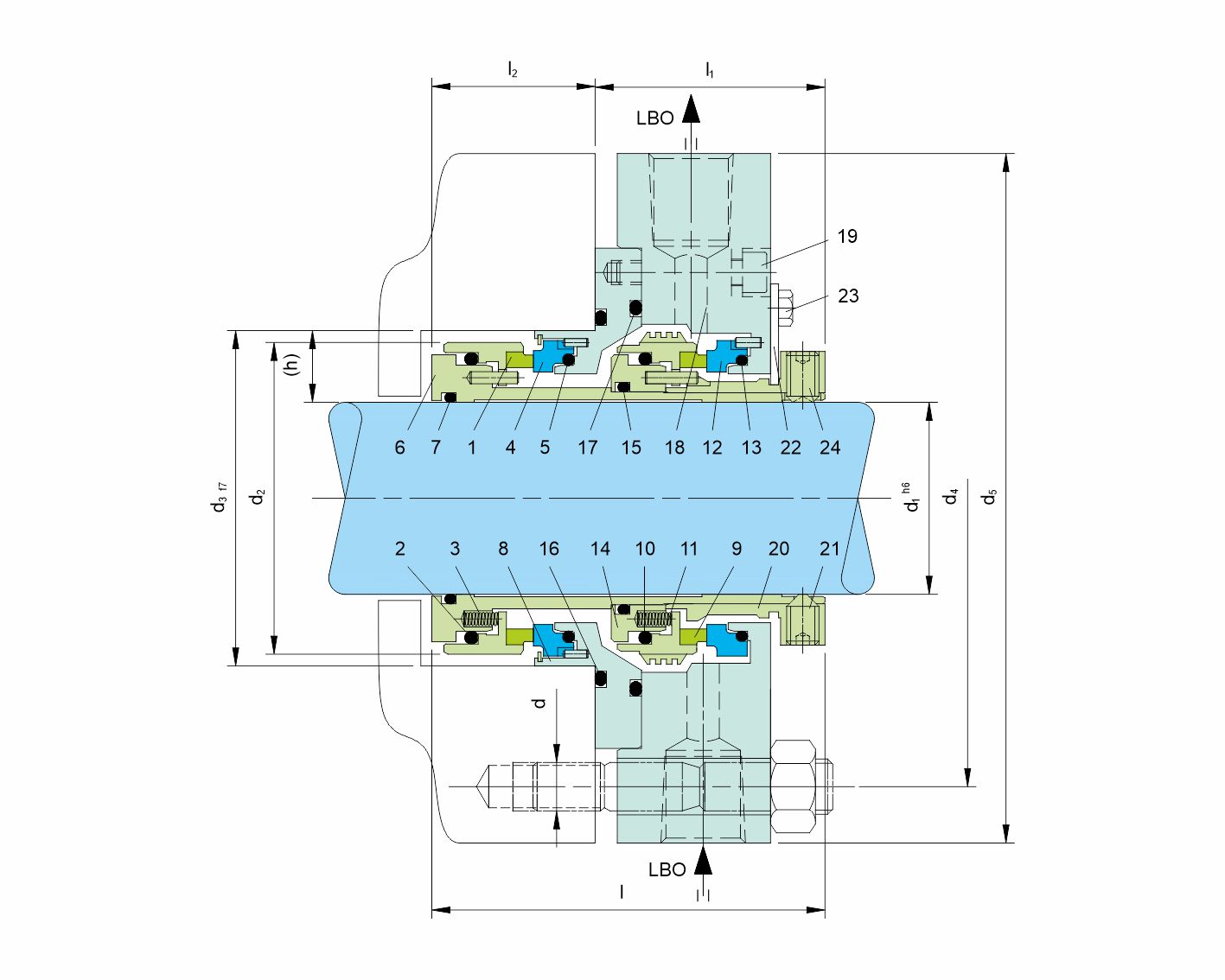

| Details | |
|---|---|
| Item No. | Description |
| 1, 9 | Seal face |
| 2, 5, 7, 10, 13, 15, 16, 17 | O-Ring |
| 3, 11 | Spring |
| 4, 12 | Seat |
| 6 | Shaft sleeve |
| 8 | Adapter |
| 14 | Driver |
| 18 | Housing |
| 19 | HSH cap screw |
| 20 | Set ring |
| 21 | Set screw |
| 22 | Assembly fixture |
| 23 | hexagon bolt |
| 24 | Set screw |
