UFL650-Ta Dual Seal
API 682 4th Edition Category 2&3
Seal Type C (Stationary)
Configuration 2CW-CW (Contacting Wet – Contacting Wet)
Configuration 3CW-FB (Contacting Wet – Face-to-Back)
Product Description
- API 682 Category 2 and 3, Type C, Arrangement 2 & 3 seal
- Dual seal in face-to-back configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction
- For plain shafts
- Stationary metal bellows design
- Shrink fitted seal rings and solid mating rings

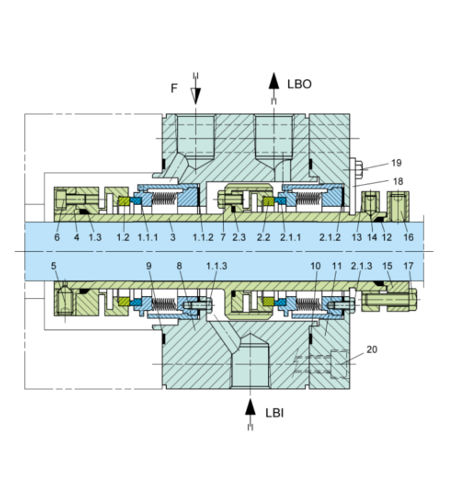

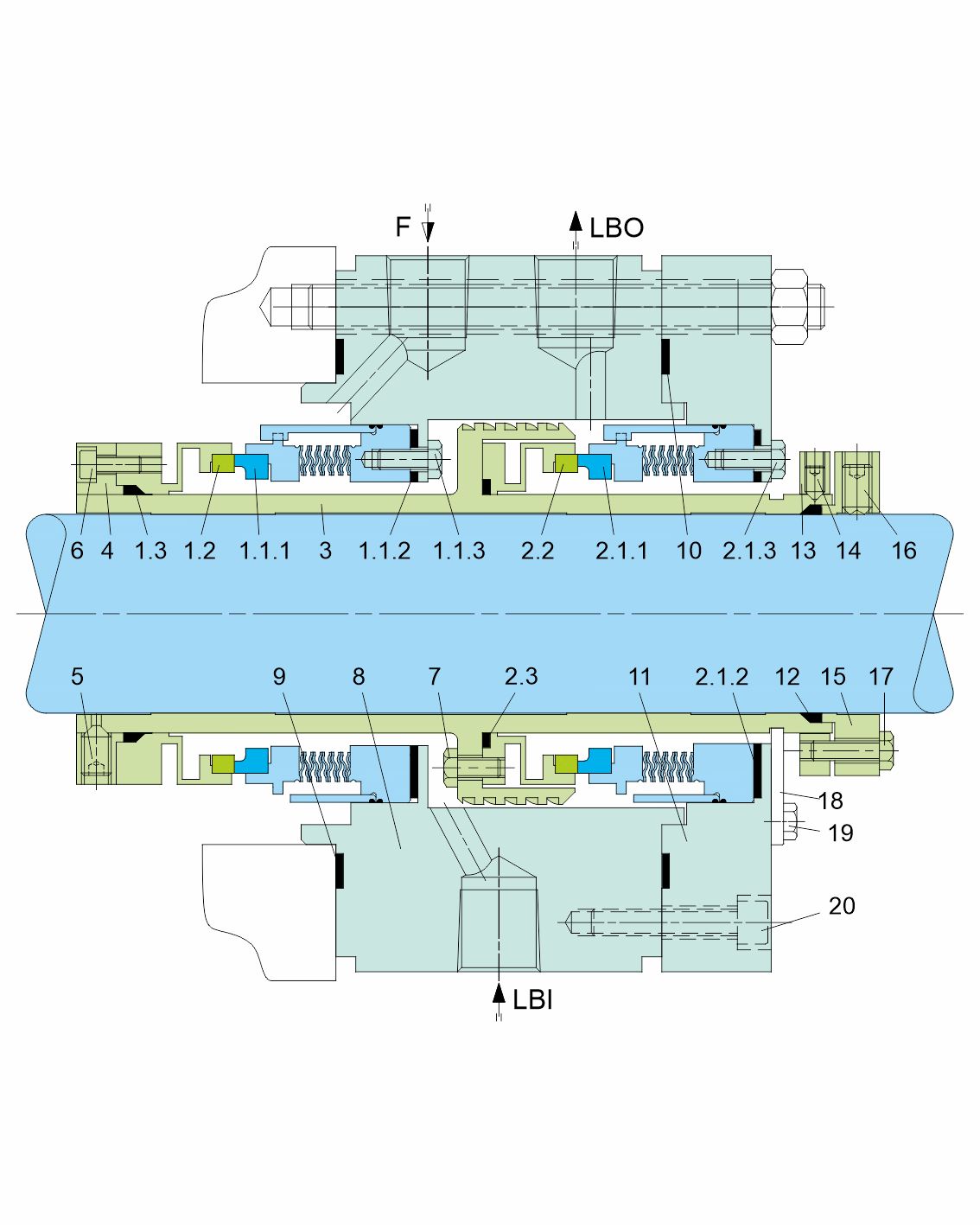

| Details | |
|---|---|
| Item No. | Description |
| 1.1.1,2.1.1 | Seal ring with Bellows Unit |
| 1.1.2,2.1.2,2.3,9,10 | Gasket |
| 1.1.3,2.1.3,7,17,19 | Hexagonal screw |
| 1.2,2.2 | Mating ring |
| 1.3,12 | Sealing ring |
| 3 | Shaft sleeve |
| 4 | Seat carrier |
| 5,14,16 | Set screw |
| 6,20 | HSH cap screw |
| 8 | Intermediate gland |
| 11 | Gland |
| 13 | Set ring |
| 15 | Pusher ring |
| 18 | Setting plate |
| F | Flush |
| LBI | Liquid Buffer / Barrier IN |
| LBO | Liquid Buffer / Barrier OUT |
