CTXAPI-DN Dual Seal
API 682 4th Edition Category 1
Seal Type A (Rotating)
Configuration 2CW-CW (Contacting Wet – Contacting Wet)
Configuration 3CW-FB (Contacting Wet – Face-to-Back)
Product Description
- API 682 Category 1, Type A, Arrangement 2 & 3
- Dual seal in face-to-back configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction
- Robust construction with shrink-fitted seal faces
- Heavy duty solid seat design

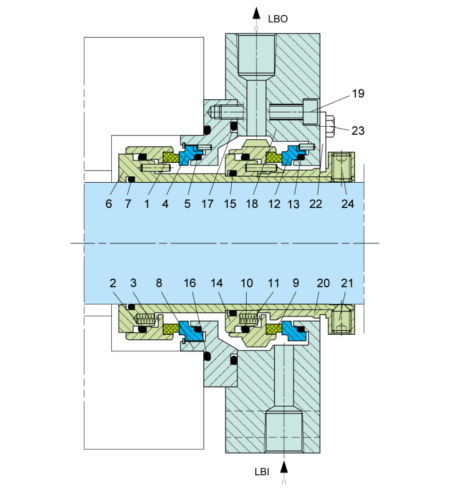

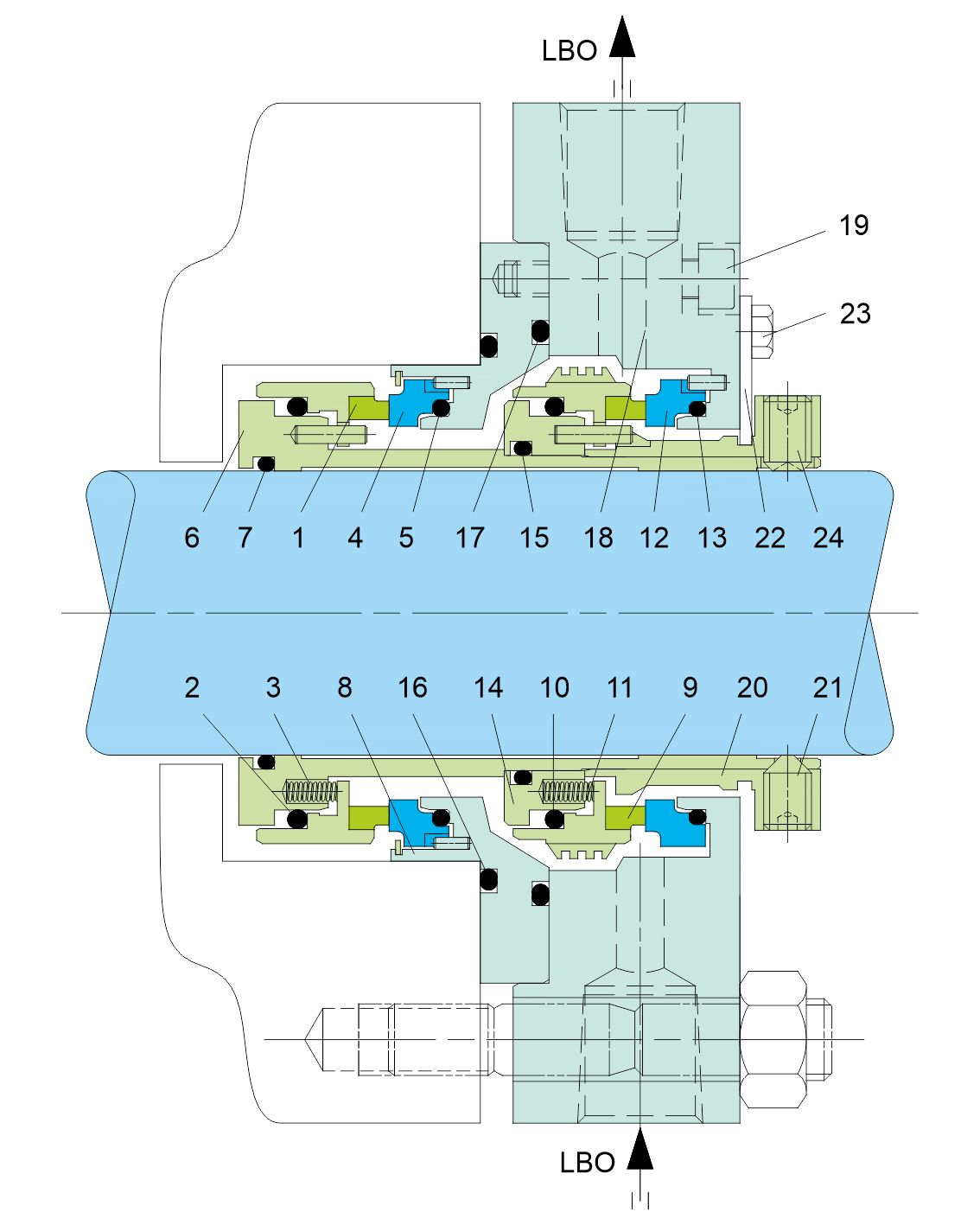

| Details | |
|---|---|
| Item No. | Description |
| 1,9 | Seal ring |
| 2,5,7,10,13,15,16,17 | O-ring |
| 3,11 | Spring |
| 4,12 | Mating ring |
| 6 | Shaft sleeve |
| 8 | Intermediate Gland |
| 14 | Driver |
| 19 | HSH Cap screw |
| 18 | Gland |
| 20 | Set ring |
| 21,24 | Set screw |
| 22 | Setting plate |
| 23 | Hexagon bolt |
| LBI | Liquid Buffer IN |
| LBO | Liquid Buffer OUT |
