UFLWT800-Ta Dual Seal
API 682 4th Edition Category 2&3
Seal Type C (Rotating)
Configuration 2CW-CW (Contacting Wet – Contacting Wet)
Configuration 3CW-FB (Contacting Wet – Face-to-Back)
Product Description
- API 682 Category 2 and 3, Type C, Arrangement 2 & 3 seal
- Dual seal in face-to-back configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction
- For plain shafts
- Rotary metal bellows design
- Shrink fitted seal rings and solid mating rings
| Details | |
|---|---|

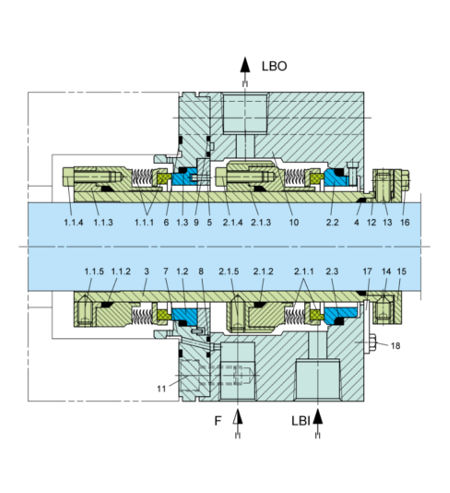

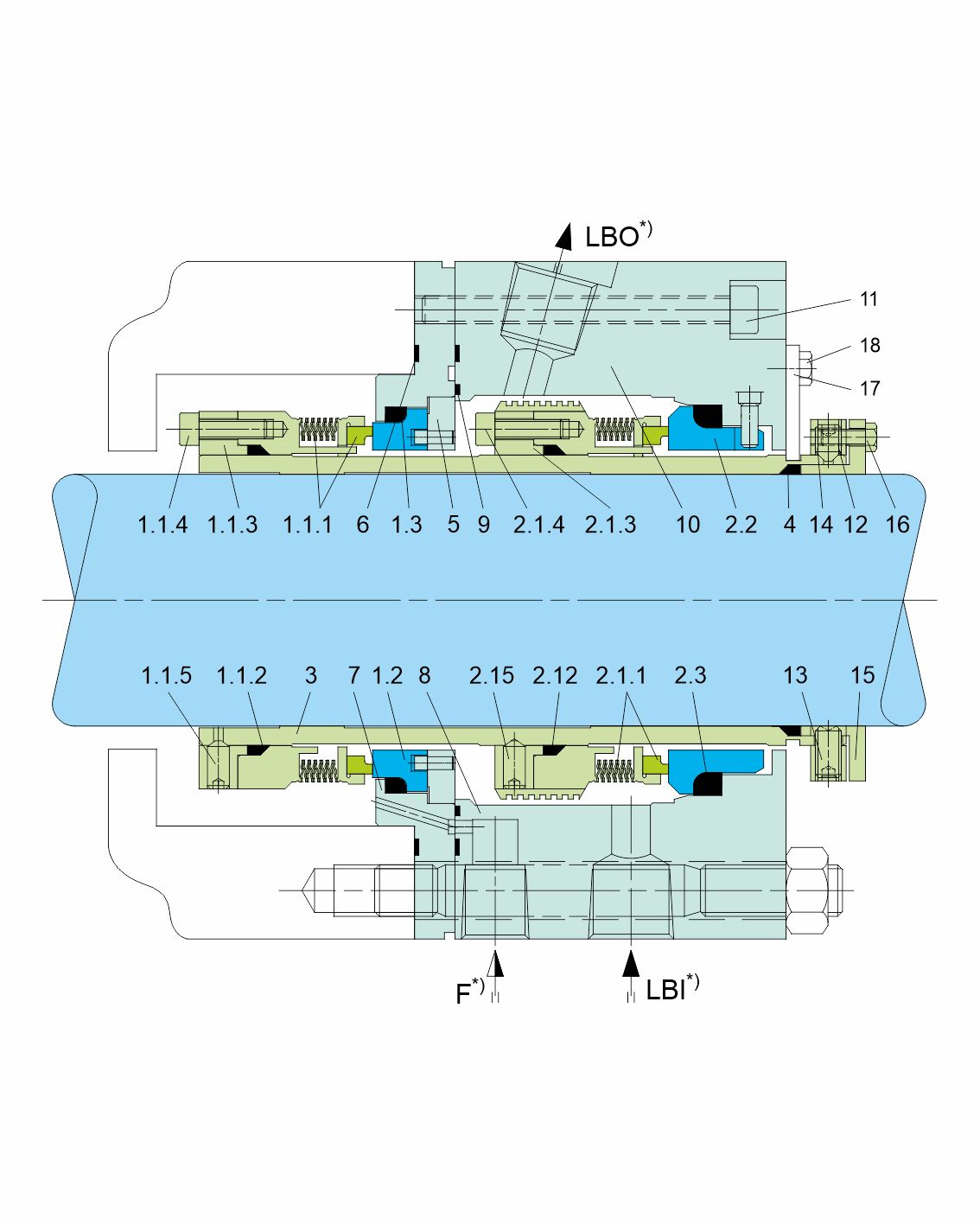

| Item No. | Description |
| 1.1.1,2.1.1 | Seal ring with Bellows Unit |
| 1.1.2,1.3,2.1.2,2.3,4 | Sealing ring |
| 1.1.3 | Thrust ring |
| 1.1.4,2.1.4,11 | HSH cap screw |
| 1.1.5,2.1.5,13,14 | Set screw |
| 1.2,2.2 | Mating ring |
| 2.1.3 | Thrust ring with pumping ring |
| 3 | Shaft sleeve |
| 5 | Adapter |
| 6,8,9 | Gasket |
| 7 | Intermediate gland |
| 10 | Gland |
| 12 | Set ring |
| 15 | Pusher ring |
| 16,18 | Hexagon bolt |
| 17 | Setting plate |
| F | Flush |
| LBI | Liquid Buffer / Barrier IN |
| LBO | Liquid Buffer / Barrier OUT |
