UFLWT800-D Dual Seal
API 682 4th Edition Category 2&3
Seal Type C (Rotating)
Configuration 3CW-BB (Contacting Wet – Back-to-Back)
Product Description
- API 682 Category 2 and 3, Type C, Arrangement 3 seal
- Dual seal in back-to-back configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction
- For plain shafts
- Rotary metal bellows design
- Shrink fitted seal rings and solid mating rings

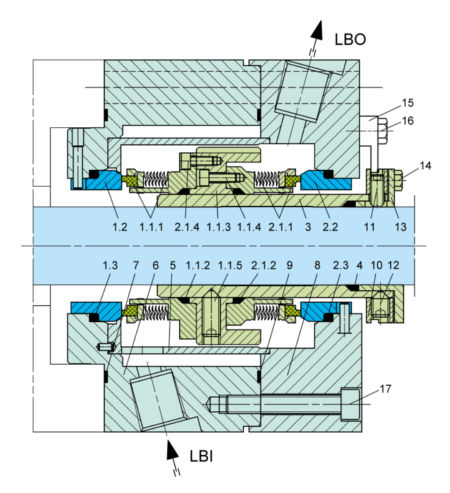

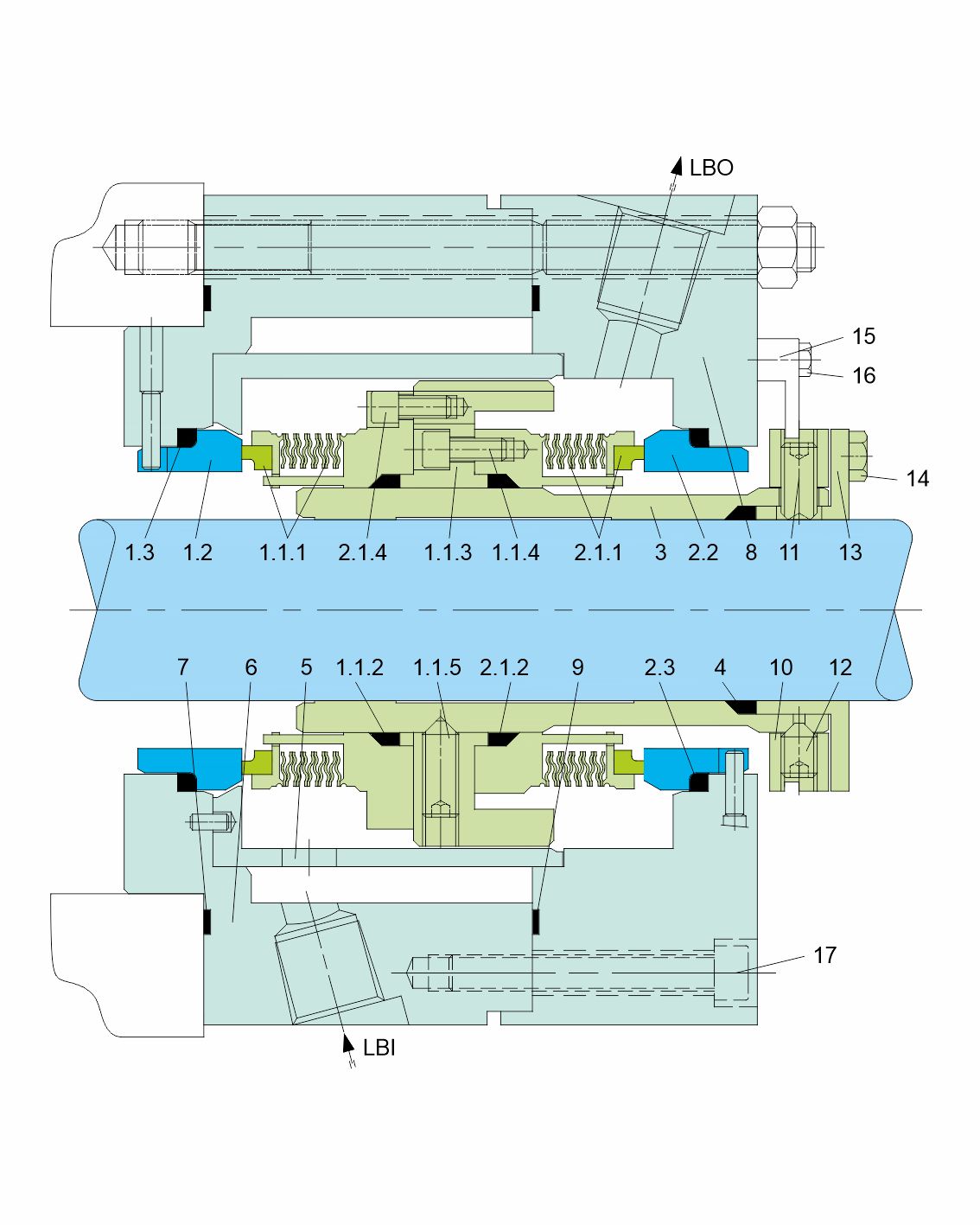

| Details | |
|---|---|
| Item No. | Description |
| 1.1.1,2.1.1 | Seal ring with Bellows Unit |
| 1.1.2,2.1.2,1.3,2.3,4 | Sealing ring |
| 1.1.3 | Drive collar with pumping ring |
| 1.1.4,2.1.4,17 | HSH cap screw |
| 1.1.5,11,12 | Set screw |
| 1.2,2.2 | Mating ring |
| 3 | Shaft sleeve |
| 5 | Adapter |
| 6 | Intermediate gland |
| 7,9 | Gasket |
| 8 | Gland |
| 10 | Set ring |
| 13 | Pusher ring |
| 14,16 | Hexagon screw |
| 15 | Assembly plate |
| LBI | Liquid Barrier IN |
| LBO | Liquid Barrier OUT |
