GSPH-KD Dual Seal
API 682 4th Edition Category 1,2&3
Seal Type A (Rotating)
Configuration 3NC-BB (Non Contacting – Back-to-Back)
Product Description
- API 682 Category 1, 2 and 3, Type A, Arrangement 3 seal
- Dual seal in back-to-back configuration
- Gas-lubricated
- Independent of direction of rotation (with U-grooves)
- Cartridge construction
- Contact free operation, no friction
- Rotary multiple springs

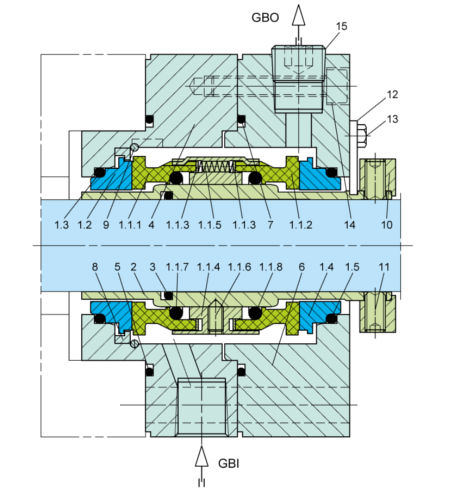

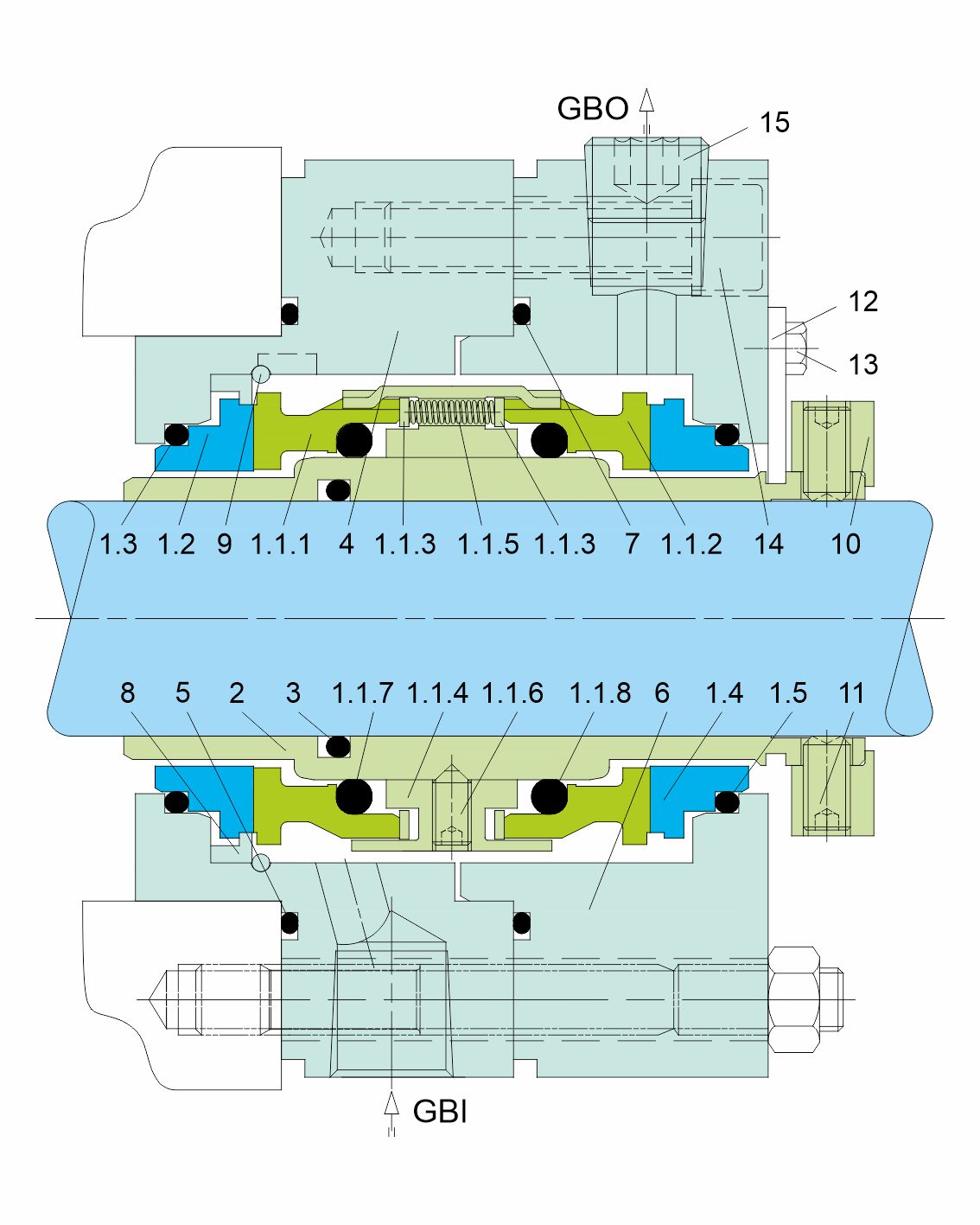

| Details | |
|---|---|
| Item No. | Description |
| 1.1.1,1.1.2 | Seal ring |
| 1.1.3 | Thrust ring |
| 1.1.4 | Driver |
| 1.1.5 | Spring |
| 1.1.6,11 | Set screw |
| 1.1.7,1.1.8,1.3,1.5,3,5,7 | O-ring |
| 1.2,1.4 | Mating ring |
| 2 | Shaft sleeve |
| 4 | Intermediate gland |
| 6 | Gland |
| 8 | Washer |
| 9 | Retaining ring |
| 10 | Set ring |
| 12 | Assembly plate |
| 13 | Hexagon screw |
| 14 | HSH cap screw |
| 15 | Plug |
| GBI | Gas Barrier IN |
| GBO | Gas Barrier OUT |
