UFL850-Ta Dual Seal
API 682 4th Edition Category 2&3
Seal Type B (Rotating)
Configuration 2CW-CW (Contacting Wet – Contacting Wet)
Configuration 3CW-FB (Contacting Wet – Face-to-Back)
Product Description
- API 682 Category 2 and 3, Type B, Arrangement 2 & 3 seal
- Dual seal in face-to-back configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction
- For plain shafts
- Rotary metal bellows design
- Shrink fitted seal rings and solid mating rings
| Details | |
|---|---|

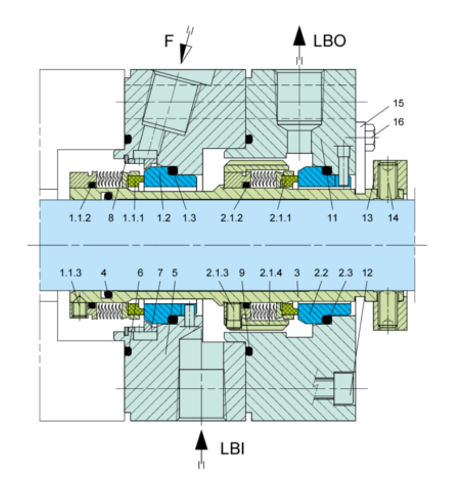

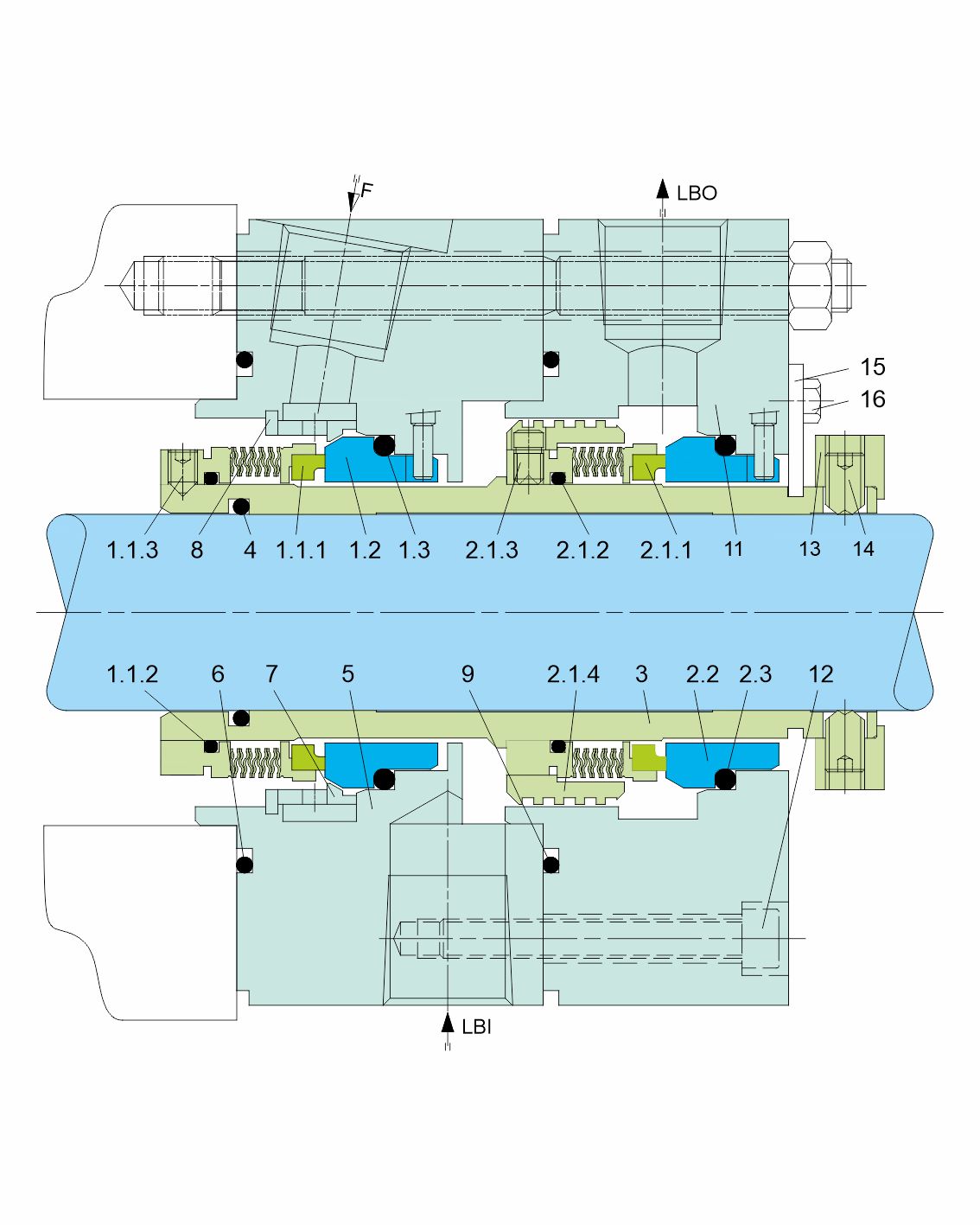

| Item No. | Description |
| 1.1.1,2.1.1 | Seal ring with Bellows Unit |
| 1.1.2,1.3,2.1.2,2.3,4,6,9 | O-ring |
| 1.1.3,2.1.3,14 | Set screw |
| 2.1.4 | Pumping sleeve |
| 1.2,2.2 | Mating ring |
| 3 | Shaft sleeve |
| 5 | Gland |
| 7 | Multi-flow Distributor |
| 8 | Reatining ring |
| 11 | Cover |
| 12 | HSH cap screw |
| 13 | Set ring |
| 15 | Setting plate |
| 16 | Hexagon screw |
| F | Flush |
| LBI | Liquid Buffer / Barrier IN |
| LBO | Liquid Buffer IN / Barrier OUT |
