UFL650 Single Seal
API 682 4th Edition Category 2&3
Seal Type C (Stationary)
Configuration 1CW-FL (Contacting Wet – FLoating throttle bushing)
Product Description
- API 682 Category 2 and 3, Type C, Arrangement 1 seal
- Single seal configuration
- Balanced
- Cartridge unit
- Stationary metal bellows
- Shrink fitted seal ring and solid mating ring

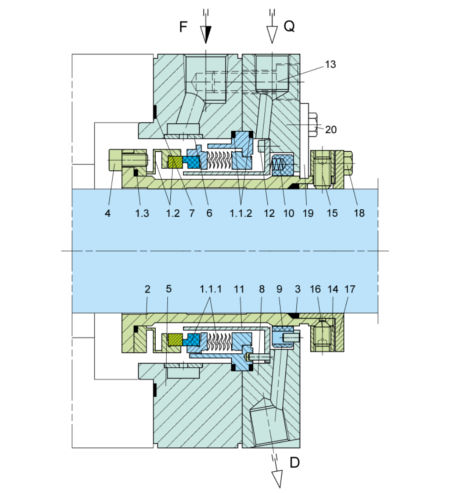

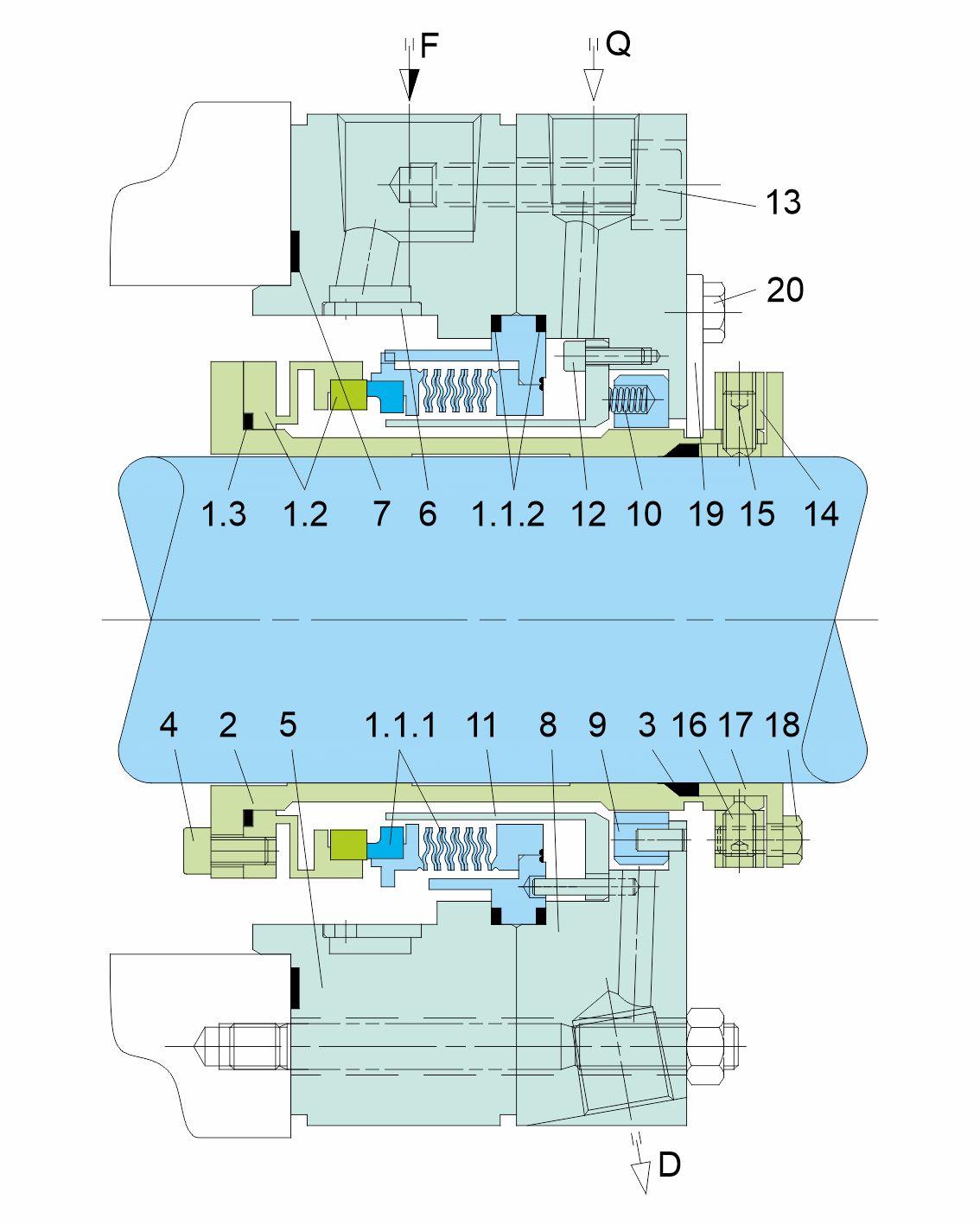

| Details | |
|---|---|
| Item No. | Description |
| 1.1.1 | Seal ring with Bellows Unit |
| 1.1.2,1.3,7 | Gasket |
| 1.2 | Mating ring |
| 2 | Shaft sleeve |
| 3 | Sealing ring |
| 4,12,13 | HSH cap crew |
| 5 | Gland |
| 6 | Multi-flow distributor |
| 8 | Cover |
| 9 | Throttle bushing |
| 10 | Spring |
| 11 | Quench Baffle |
| 14 | Drive collar |
| 15,16 | Set screw |
| 17 | Pusher ring |
| 18,20 | Hexagon bolt |
| 19 | Setting plate |
| F | Flush |
| Q | Quench |
| D | Drain |
