UFL850 Single Seal
API 682 4th Edition Category 2&3
Seal Type B (Rotating)
Configuration 1CW-FL (Contacting Wet – FLoating throttle bushing)
Product Description
- API 682 Category 2 and 3, Type B, Arrangement 1 seal
- Single seal configuration
- Balanced design
- Independent of direction of rotation
- Cartridge Construction
- For plain shafts
- Rotary metal bellows design
- Shrink fitted seal ring and solid stationary ring

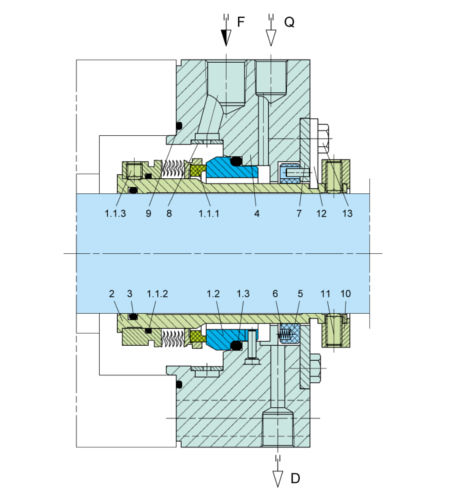

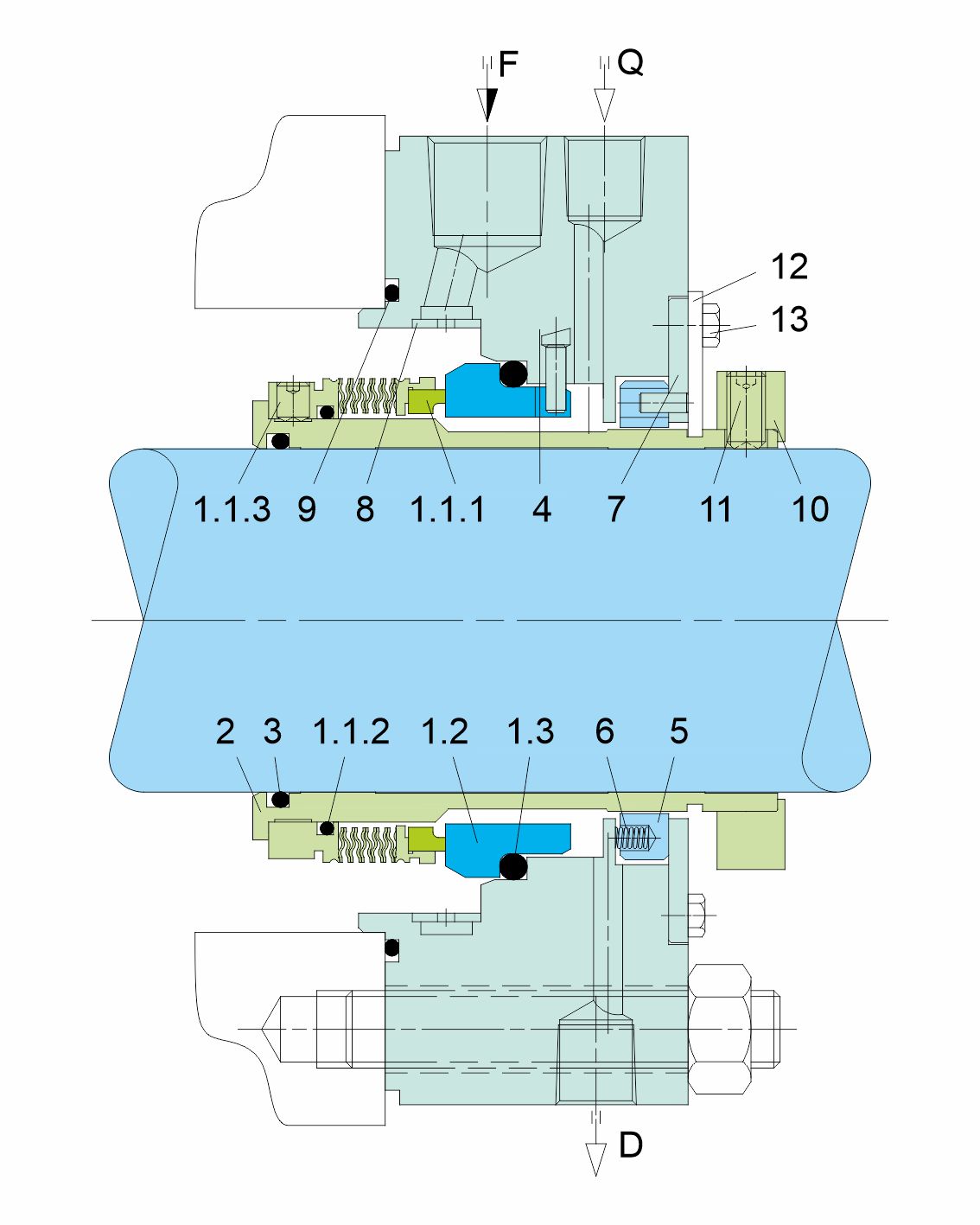

| Details | |
|---|---|
| Item No. | Description |
| 1.1.1 | Seal Ring with Bellows Unit |
| 1.1.2,1.3,3,9 | O-ring |
| 1.1.3,11 | Set screw |
| 1.2 | Mating ring |
| 2 | Shaft sleeve |
| 4 | Gland |
| 5 | Throttle bushing |
| 6 | Spring |
| 7 | Washer |
| 8 | Multi-flow distributor |
| 10 | Set ring |
| 12 | Setting plate |
| 13 | Hexagon bolt |
| F | Flush |
| Q | Quench |
| D | Drain |
