UFL650-D Dual Seal
API 682 4th Edition Category 2&3
Seal Type C (Stationary)
Configuration 3CW-FF (Contacting Wet – Face-to-Face)
Product Description
- API 682 Category 2 and 3, Type C, Arrangement 3 seal
- Dual seal in face-to-face configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction
- For plain shafts
- Stationary metal bellows design
- Shrink fitted seal rings and solid mating rings

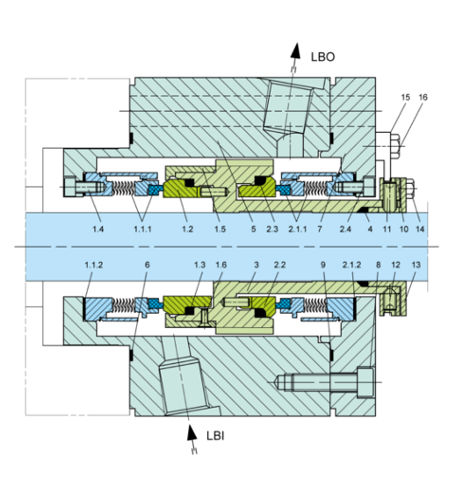

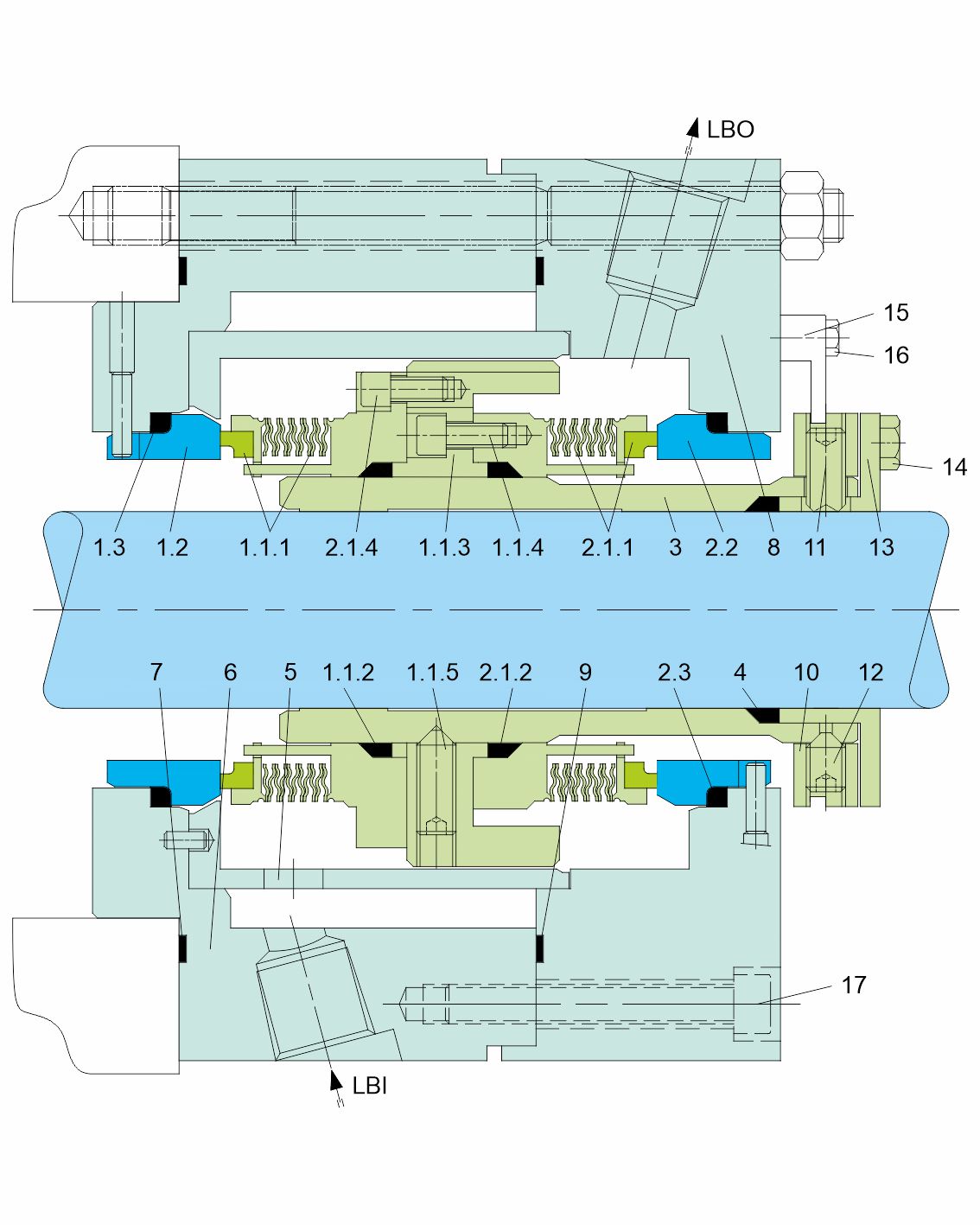

| Details | |
|---|---|
| Item No. | Description |
| 1.1.1, 2.1.1 | Seal ring with Bellows unit |
| 1.1.2, 2.1.2,6,9 | Gasket |
| 1.2, 2.2 | Mating ring |
| 1.3,2.3,4 | Sealing ring |
| 1.4, 2.4,8 | HSH cap screw |
| 1.5 | Lock ring |
| 1.6,11,12 | Set screw |
| 3 | Shaft sleeve |
| 5 | Intermediate gland |
| 7 | Gland |
| 10 | Set ring |
| 13 | Pusher ring |
| 14,16 | Hexagon bolt |
| 15 | Assembly plate |
| LBI | Liquid Barrier IN |
| LBO | Liquid Barrier OUT |
