CTXAPI-SN Single Seal
API 682 4th Edition Category 1
Seal Type A (Rotating)
Configuration 1CW-FX (Contacting Wet – FiXed throttle bushing)
Product Description
- API 682 Category 1, Type A, Arrangement 1
- Single seal configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction
- Robust construction with shrink-fitted seal face
- Heavy duty solid seat design

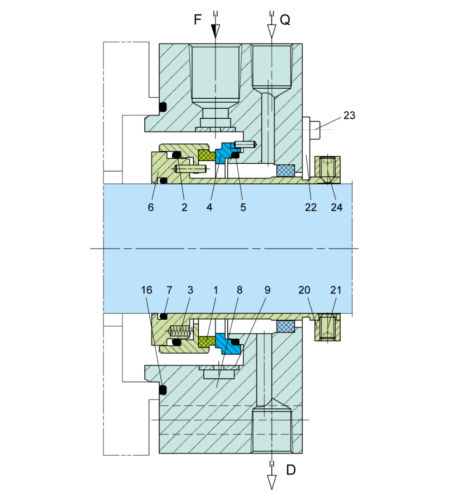

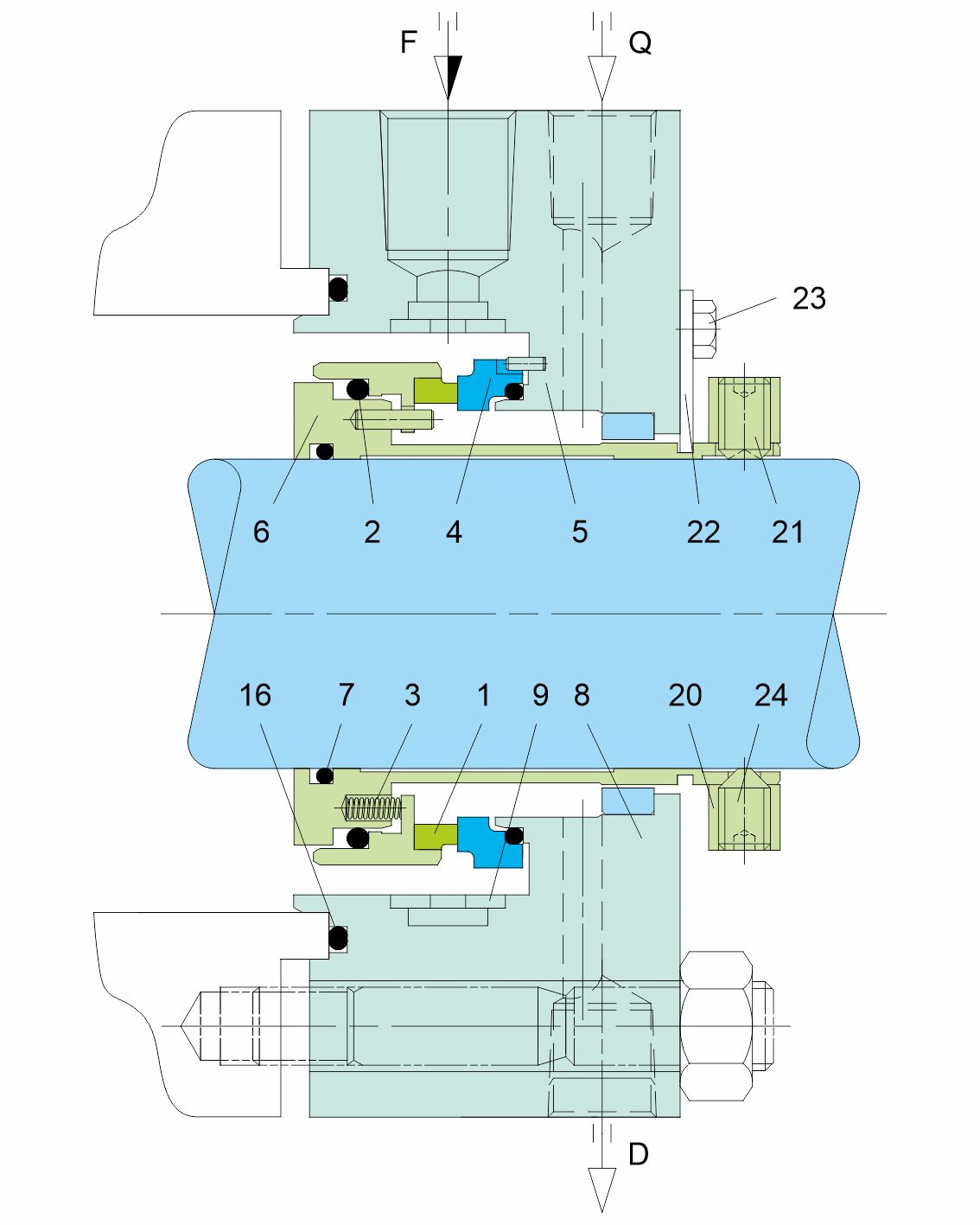

| Details | |
|---|---|
| Item No. | Description |
| 1 | Seal ring |
| 2,5,7,16 | O-ring |
| 3 | Spring |
| 4 | Mating ring |
| 6 | Shaft sleeve |
| 8 | Gland |
| 9 | Multi-flow distributor |
| 20 | Set ring |
| 21,24 | Set screw |
| 22 | Setting plate |
| 23 | HSH cap screw |
| F | Flush |
| Q | Quench |
| D | Drain |
