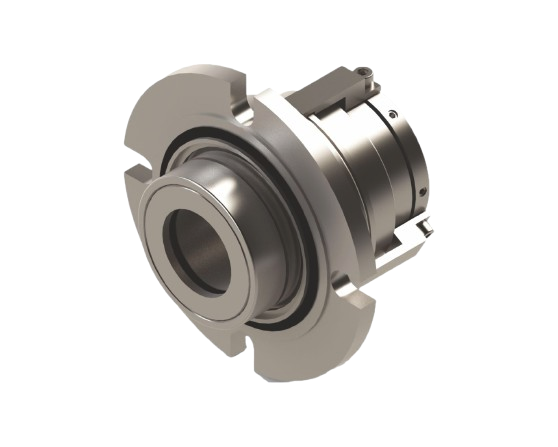

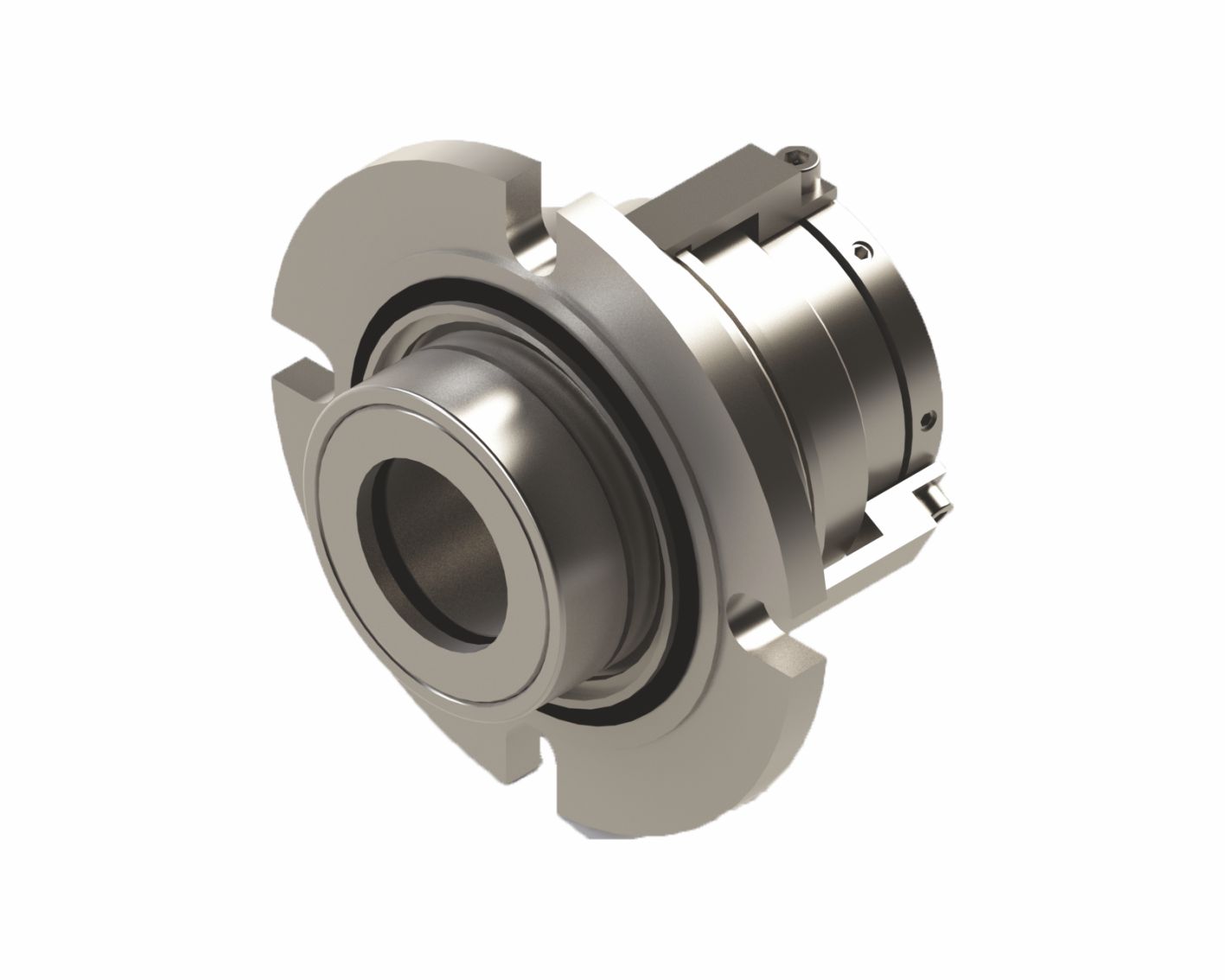

PP - D
Product Description
- Dual seal configuration
- Balanced design
- Independent of direction of rotation
- Semi-Cartridge construction
- Double pressure balanced design
- Designed with provision for internal barrier fluid circulation
- No dynamic O-Ring on the shaft
- Robust construction with shrink-fitted seal faces
- Seal faces have a large clearance to the shaft
- Static springs on both the sides

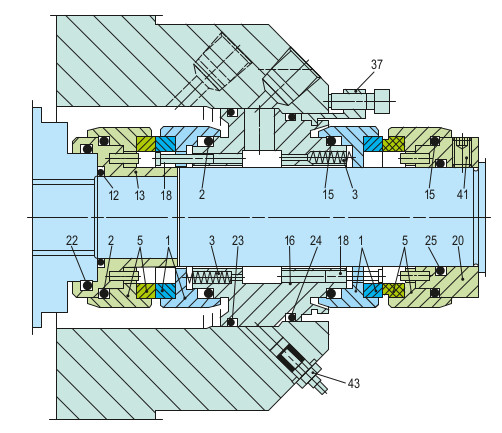

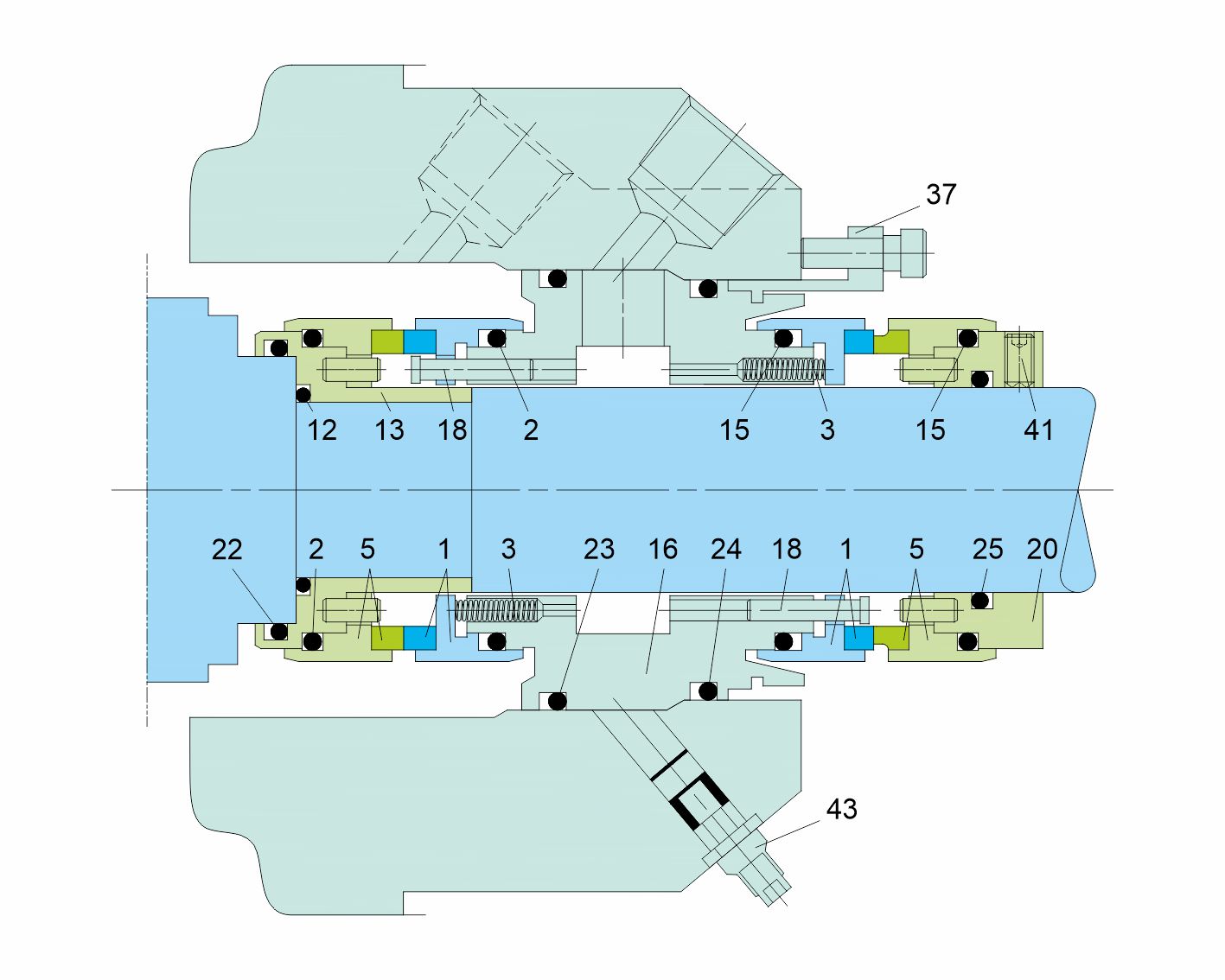

| Details | |
|---|---|
| Item No. | Description |
| 1 | Seal face |
| 5 | Seat |
| 13 | Sleeve |
| 16 | Housing |
| 18 | Pin |
| 37 | Assembly fixture |
| 2, 12, 15, 22, 23, 24, 25 | O-Ring |
| 43 | Plug |
