B750VN Single Seal
API 682 4th Edition Category 2&3
Seal Type A (Rotating)
Configuration 1CW-FL (Contacting Wet – Floating throttle bushing)
Product Description
- API 682 Category 2 and 3, Type A, Arrangement 1
- Single seal configuration
- Balanced design
- Independent of direction of rotation
- Cartridge construction
- Pumping device available for increased efficiency in circulation
- Rotary unit with multiple springs

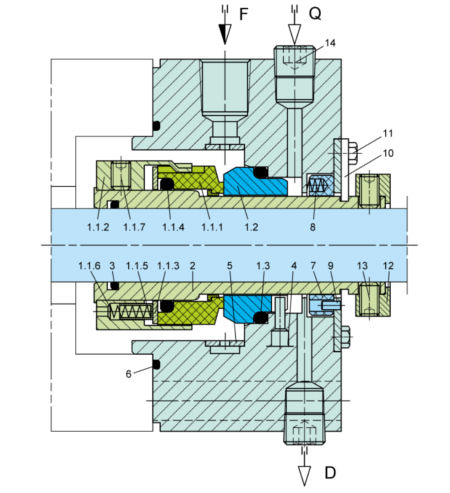

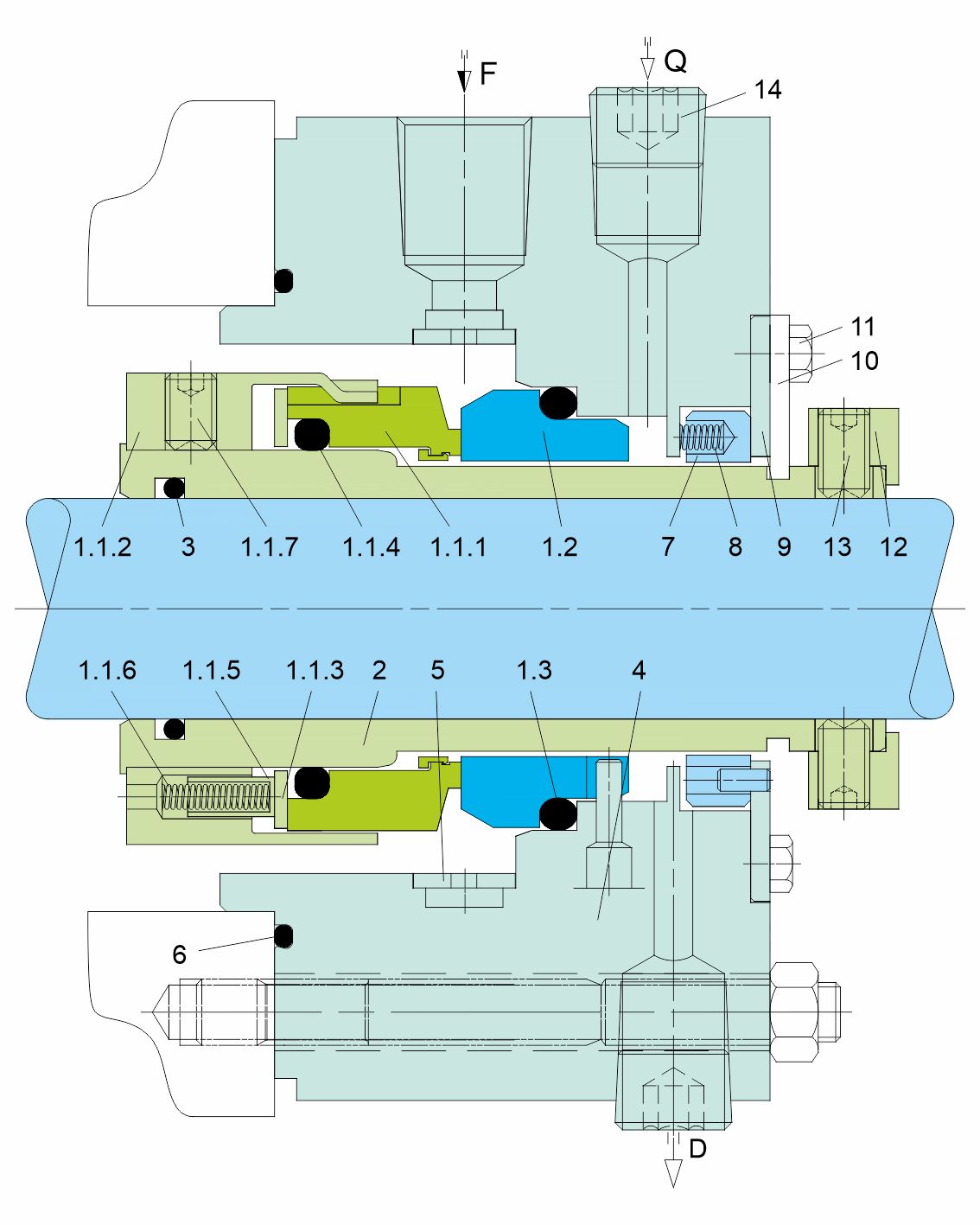

| Details | |
|---|---|
| Item No. | Description |
| 1.1.1 | Seal ring |
| 1.1.2 | Driver |
| 1.1.3 | Thrust ring |
| 1.1.4,1.3,3,6 | O-ring |
| 1.1.5 | Spring Sleeve |
| 1.1.6,8 | Spring |
| 1.1.7,13 | Set screw |
| 1.2 | Mating ring |
| 2 | Shaft sleeve |
| 4 | Gland |
| 5 | Multi-flow distributor |
| 7 | Throttle bushing |
| 9 | Washer |
| 10 | Setting plate |
| 11 | Hexagon bolt |
| 12 | Set ring |
| 14 | Plug |
| F | Flush |
| Q | Quench |
| D | Drain |
