GSPH Ta Dual Seal
API 682 4th Edition Category 1,2&3
Seal Type A (Rotating)
Configuration 2NC-CS (Non Contacting – Containment Seal)
Product Description
- API 682 Category 1, 2 and 3, Type A, Arrangement 2 seal
- Dual seal in face-to-back configuration
- Gas lubricated
- Independent of direction of rotation (with U-grooves)
- Cartridge construction
- Contact free operation, no friction
- Rotary multiple springs

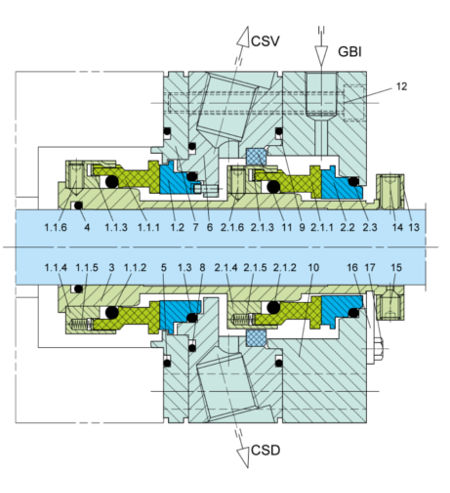

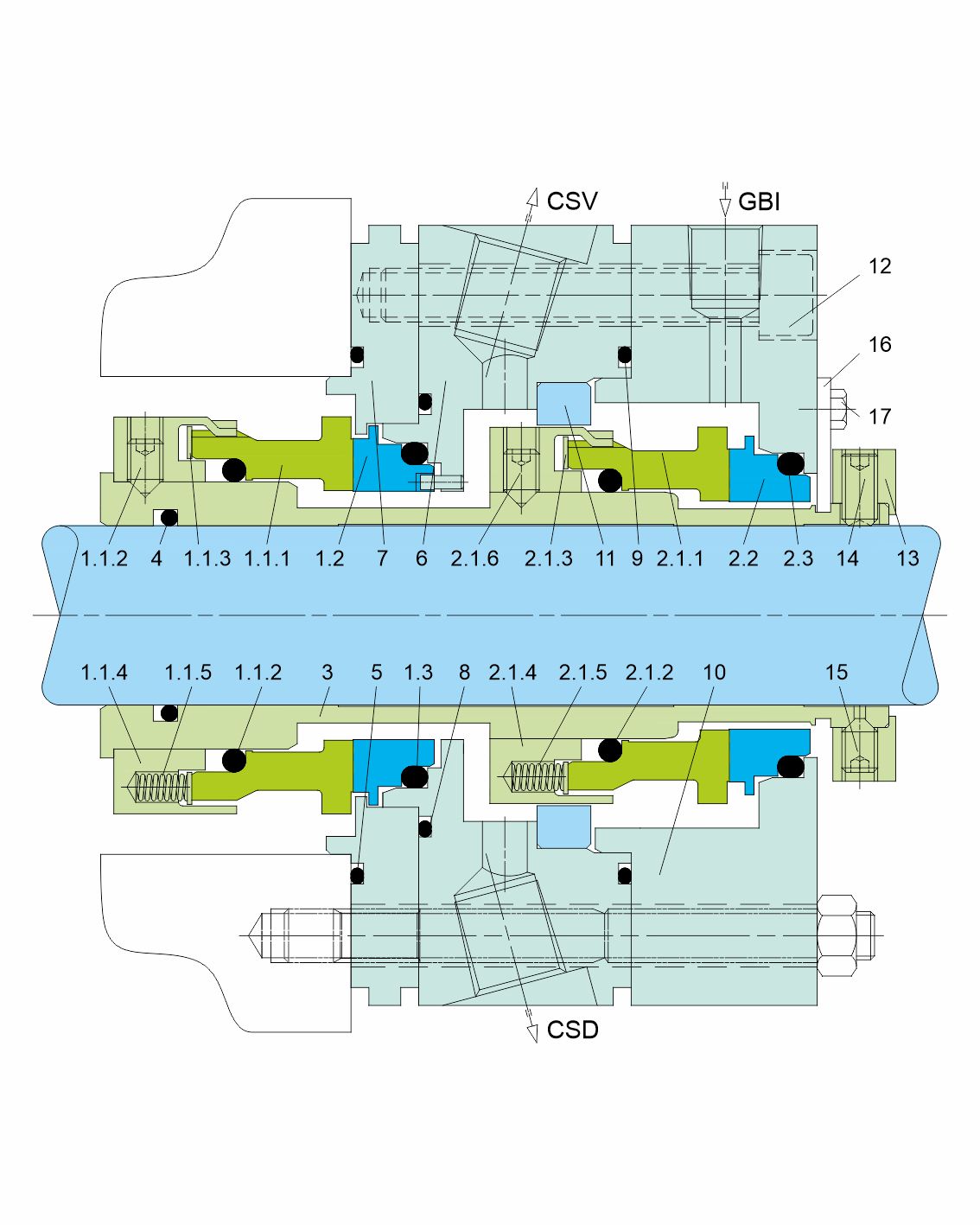

| Details | |
|---|---|
| Item No. | Description |
| 1.1.1,2.1.1 | Seal ring |
| 1.1.2,1.3,2.1.2,2.3,4,5,8,9 | O-ring |
| 1.1.3,2.1.3 | Thrust ring |
| 1.1.4,2.1.4 | Driver |
| 1.1.5,2.1.5 | Spring |
| 1.1.6,2.1.6,14,15 | Set screw |
| 1.2,2.2 | Mating ring |
| 3 | Shaft sleeve |
| 6 | Intermediate gland |
| 7 | Gland |
| 10 | Cover |
| 11 | Throttle bush |
| 12 | HSH cap screw |
| 13 | Set ring |
| 16 | Assembly plate |
| 17 | Hexagon bolt |
| CSV | Containment Seal Vent |
| CSD | Containment Seal Drain |
| GBI | Gas Buffer IN |
